Chiron MILL 800 - 5-axis machining centers

  • Used

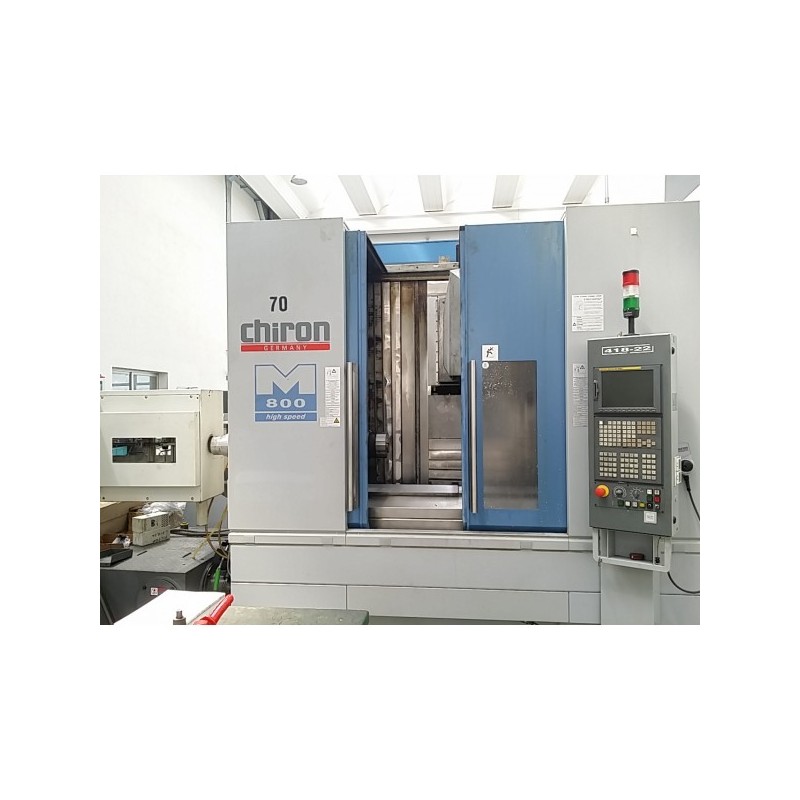

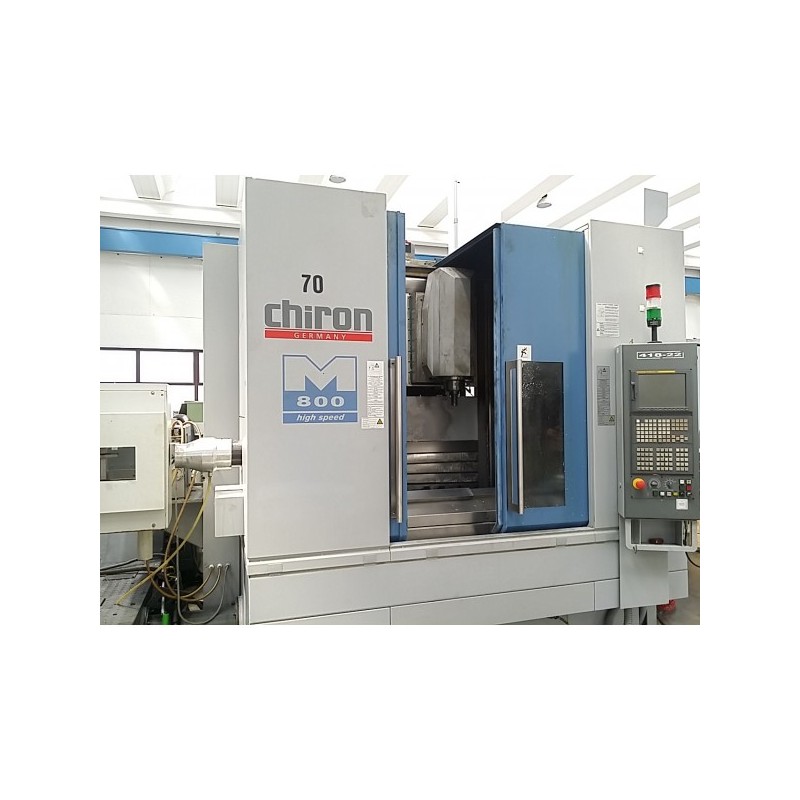

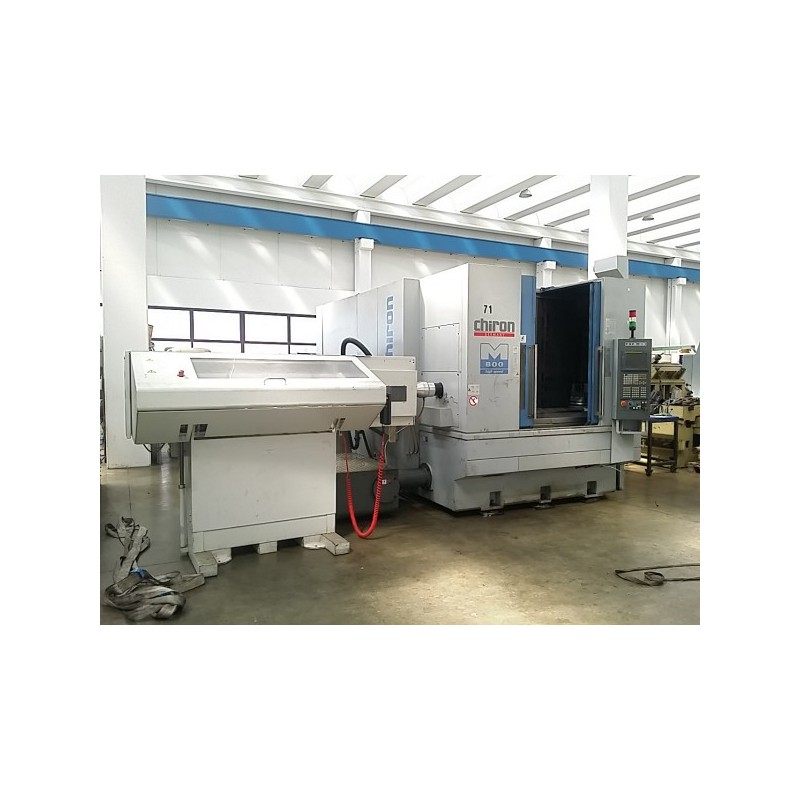

Chiron MILL 800
  • Chiron MILL 800
  • Chiron MILL 800
  • Chiron MILL 800
  • Chiron MILL 800
  • Chiron MILL 800
  • Chiron MILL 800
5 axis machininng center (milling/turning from bar)

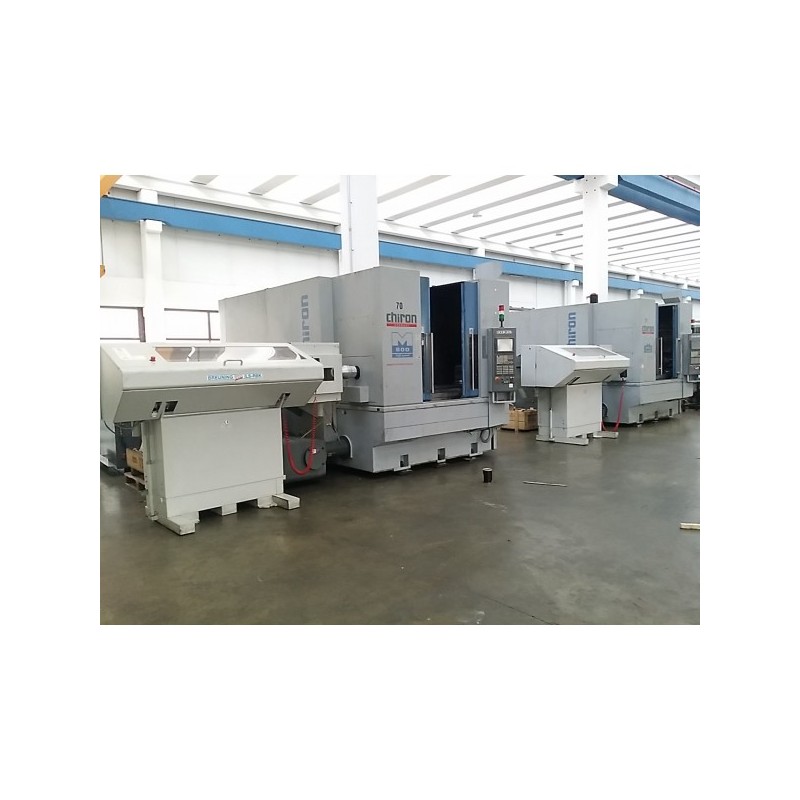

Under power in our warehouse

MAKE CHIRON

MODEL 800 5 axis MILL

Fanuc 18iMBS CNC (5 simoultaneous axis 1 *)

X, Y, Z (mm) 800 – 500-550

Rapids (Highspeed) 60 m/min or two single head CNC controlled (B axis) +/-100°

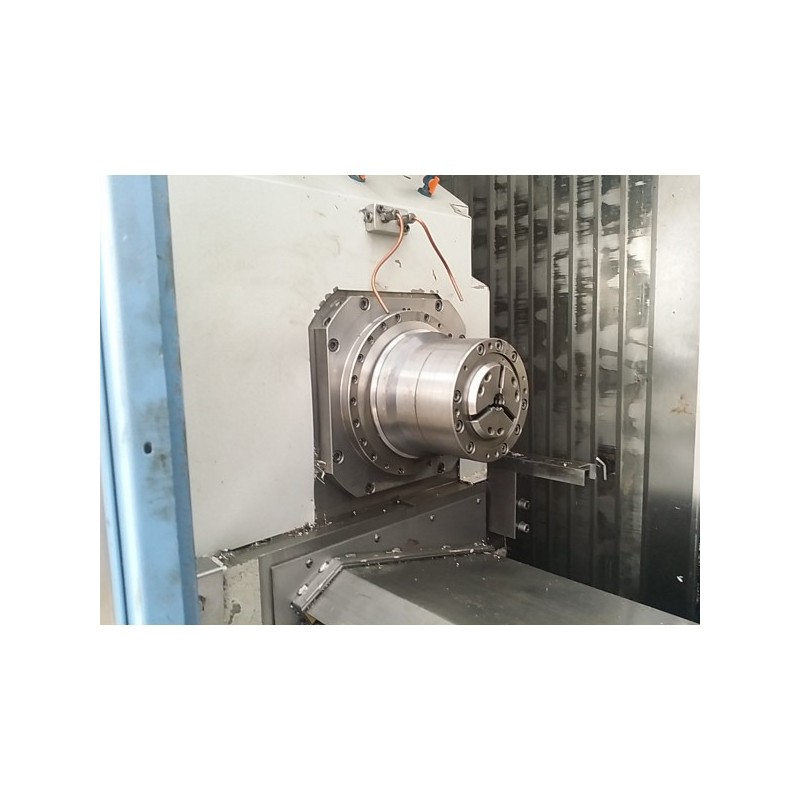

Turning spindle Peiseler

Milling spindle 12,000 rpm 140 Nm (see note 2 **)

Tools 65

Tool type HSK-A 63 DIN 69893

Tool change time 1.5 sec (see note 3 ***)

Table 1400x500

Max table load 1200 kgs

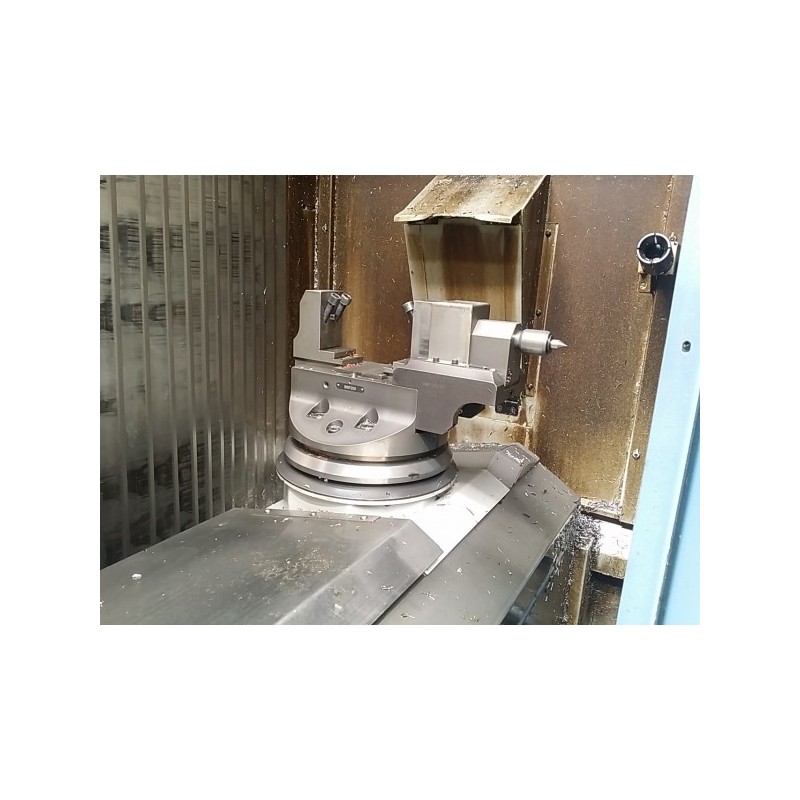

Coolant through spindle 70 bar (see note 4 ****) CNC controlled clamping/rotating unit for 6th face machining (see footnote 5) Pressurised linear encoders

Swarf conveyor Renishaw-ready Y.O.M. 2006

Weight 7500 kgs Turning package
Max dia 65 mm
RPM: 15/Max 4500 42.5 KW/90 Nm.
Hydraulic clamping 800 Nm.
Used

Data sheet

Year of production
2006
CNC
FANUC
Travel X (mm)
800
Y travel (mm)
500
Z stroke (mm)
550
Hours of use
Mas de 5000
Rotation speed (rpm)
12000
Table size (width) (mm)
500
Table size (length) (mm)
1400
Tool changer (no tools)
65
5-axis machining center milling turning from barra (mill-turn)
Request price
