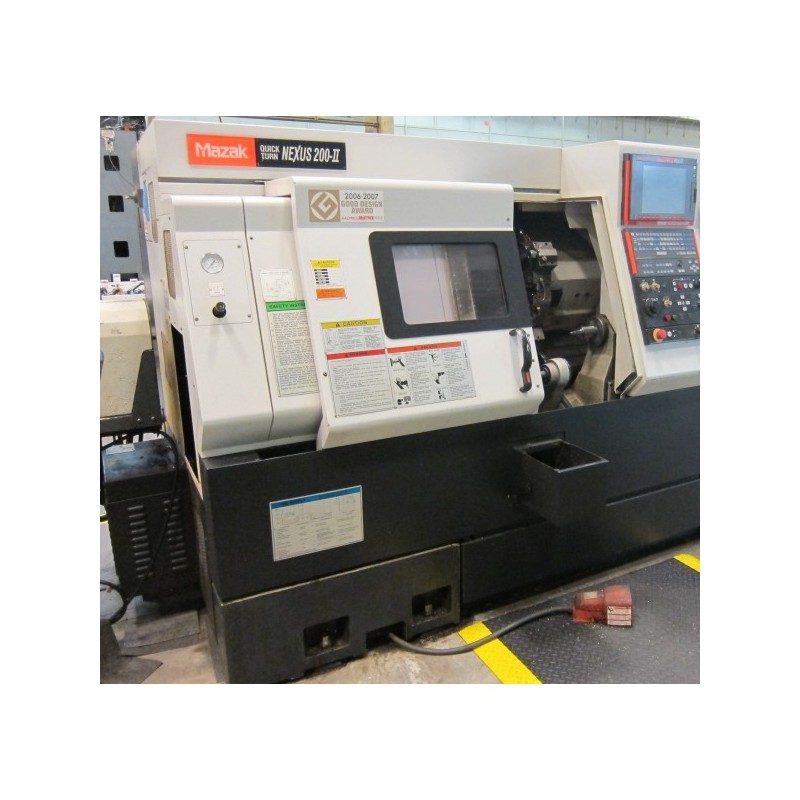

2008 MAZAK QT NEXUS 200-II CNC LATHE

Mazak
€25,650.00
Tax excluded
MAZAK QUICK TURN NEXUS 200-II
2-AXIS TURNING CENTER
Share
Price €25,650.00
Condition Used - Working

Machine data

Manufacturer
Condition Used - Working
Price type Fixed price

Technical specifications

Weight 4.808,08 kg
Length 2.641,60 mm
Width 1.778 mm
Height 1.854,20 mm
Swing diameter 610,11 mm
Distance between centers 512,06 mm
Bar capacity 65,02 mm
Spindle speed 5.000 rpm
Spindle power 26,10 kW
Number of axes 2 ejes

Occasional seller

M
MACHINES (U.K.) LIMITED Private seller
Member since 2017
10 ads online

SEND REQUEST

2008 MAZAK QT NEXUS 200-II CNC LATHE

MAX BALANCE ...................... 24.02 "
OSCILLATION OVER THE CARRIAGE .................... 13.78 "
MAXIMUM MACHINING LENGTH ............... 20.16 "
SPINDLE HEAD - BAR WORK CAPACITY ....... 3 "- 2.56"
X-AXIS TRAVEL ........................ 7.5 "
Z-AXIS TRAVEL ........................ 21.125 "
SPINDLE SPEED .......................... 5,000 RPM
SPINDLE NOSE .................. A2-6
TURRET TYPE ............................ 12 STATION DRUM
RAPID TRAVERSE SPEED (X-Z AXIS) ......... 1181-1299 IPM
MAIN SPINDLE MOTOR ..................... 35 HP
MACHINE SIZE: 104 "X 70" X 73 "TALL
APPROXIMATE MACHINE WEIGHT: 10,600 LBS
EQUIPPED WITH:
* MAZAK MAZATROL MATRIX NEXUS CNC CONTROL * TAILSTOCK
* CHIP CONVEYOR SIDE DISCHARGER INVERTER
* AUTOMATIC PARTS CATCHER
* AUTOMATIC TOOL EYE * NEW ROYAL COLLET CLOSER
* 8" KITAGAWA CHUCK * CHUCK OPEN CLOSE CONFIRM

  • Year: 2008
  • Seller's country: United Kingdom
  • State: Used - Functional
  • Weight: 2,500 - 5,000 kg
  • Long: 2,000 - 3,000 mm
  • Width: 1,000 - 2,000 mm
  • High: 1,500 - 2,500 mm
  • Spindle speed: 3,000 - 8,000 rpm
  • Spindle power: 15 - 30 kW
  • Number of axes: 2 axes
  • Turning diameter: 500 - 800 mm
  • Distance between points: 500 - 1,000 mm
  • Bar feed: 65 - 100 mm
  • Condition: Array
  • Peso: 0.000000
