SACEM MS 110 CHUCK

Sacem
SACEM MS 110 BORING MILL
Main spindle inner taper: ISO 50.
Longitudinal travel of the main spindle (quill): 900 mm
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer sacem
Condition Used - Working
Price type On request

Technical specifications

X travel 2.000 mm
Y travel 1.500 mm
Z travel 1.800 mm
Spindle speed 1.000 rpm
Spindle power 18,65 kW

Occasional seller

M
Machine Tools Investments, S.L. Private seller
Member since 2017
19 ads online

SEND REQUEST

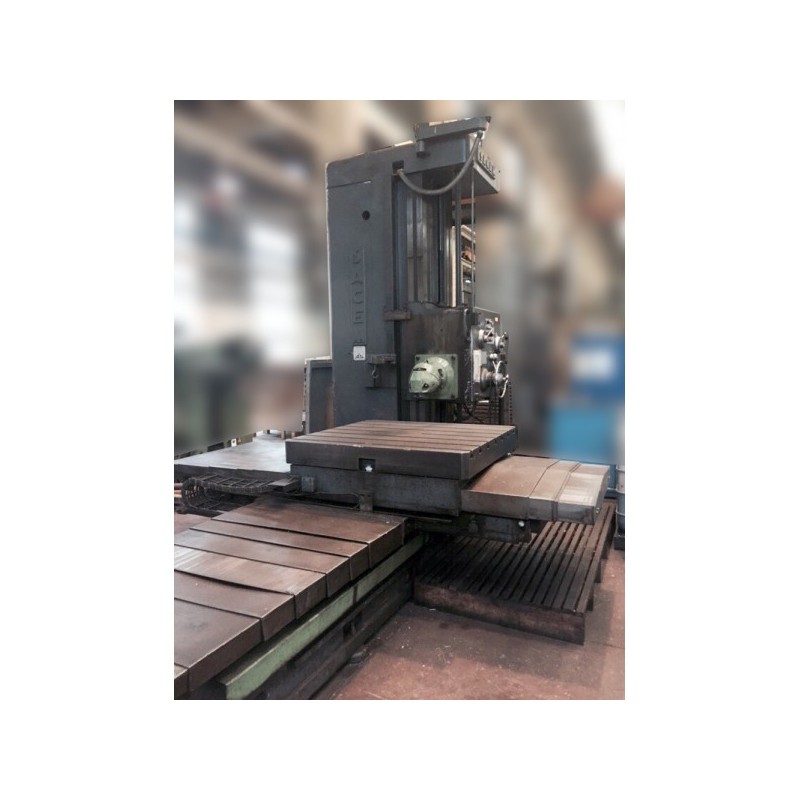

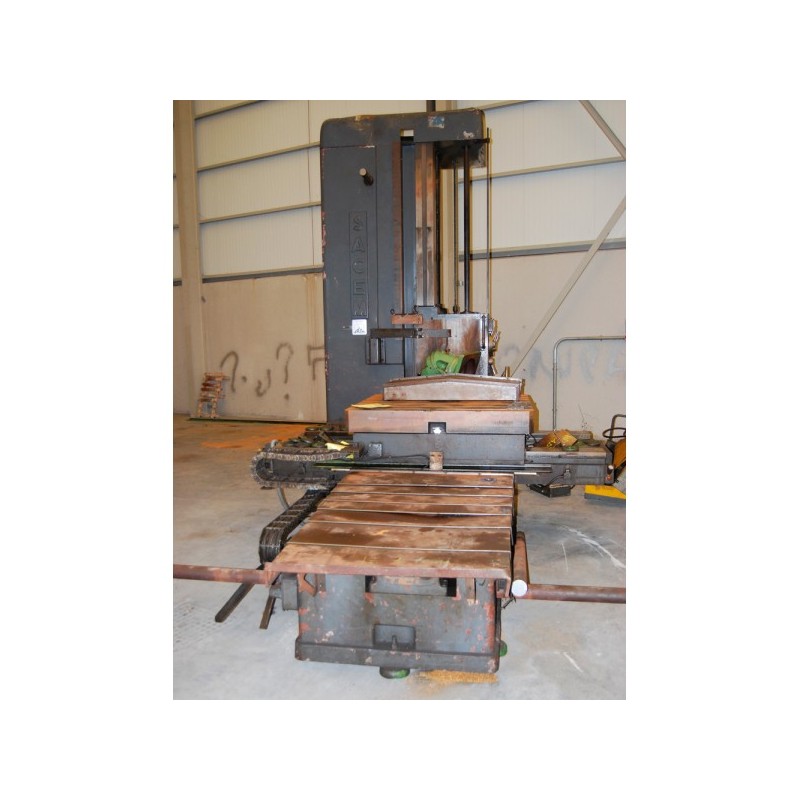

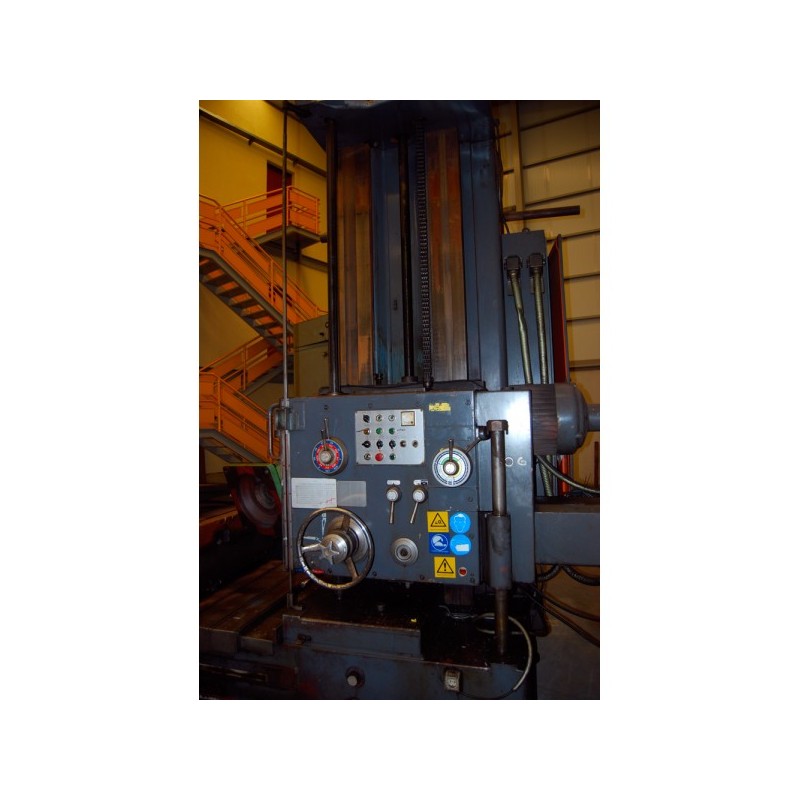

MANDRINADORA SACEM MS 110
MANDRINADORA SACEM MS 110
MANDRINADORA SACEM MS 110
MANDRINADORA SACEM MS 110

Main spindle inner taper: ISO 50.
Main spindle longitudinal travel (quill): 900 mm
Spindle vertical travel: 1800 mm
Minimum and maximum speed: 5 to 1000.
Rotary table dimensions: 1,260 x 1,400 mm.
Rapid traverse for X, Y, Z, and W axes: 5,000 mm/min.
Table cross travel: 2,000 mm
Table longitudinal travel: 1,500 mm.
Rapid traverse in all movements: 2,000 mm/min.
Maximum table load: 8,000 kg. Head vertical travel: 1,400 mm.
Drive motor power: 25 HP

  • Seller's country: Spain
  • State: Used - Functional
  • X Travel: 2,000 - 3,000 mm
  • Y travel: More than 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: Up to 3,000 rpm
  • Spindle power: 15 - 30 kW
  • Condition: Array
  • Peso: 0.000000
