PA3438 hydraulic press with hydraulic shock absorber

Good morning!!!
I would like to introduce myself!!
My full name is Viktor Kyz. I am a Sales Manager for machine tools at "STAN-MT" LLC, a USA trading company.
I can offer you high-quality machines.

Hydraulic press PA3438 with hydraulic shock absorber

Sales Manager:
Viktor Kyz
Mobile phone +38 095 6014214
Mobile phone +38 096 2152503
Website: www.stanbrokservice.com
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Weight 82.000 kg
Length 4.800 mm
Width 7.100 mm
Height 7.100 mm
Motor power 30 kW

Occasional seller

S
STAN MT LLC Private seller
Member since 2017
80 ads online

SEND REQUEST

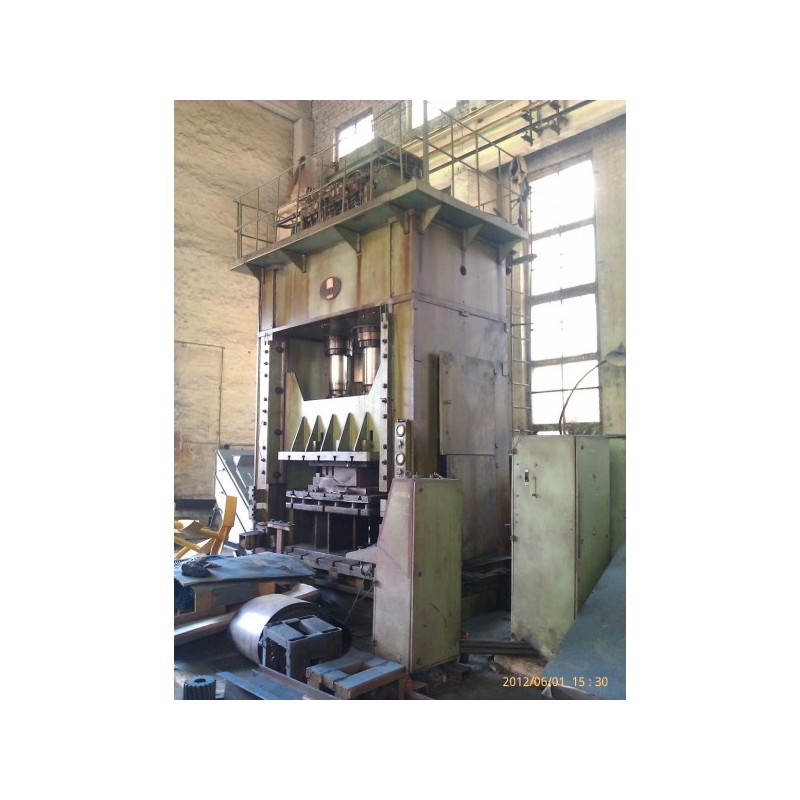

Hydraulic press PA3438 with hydraulic cushion
Hydraulic press PA3438 with hydraulic cushion
Hydraulic press PA3438 with hydraulic cushion

PA3438 hydraulic press with hydraulic cushion

Some data:

PA3438 hydraulic press with hydraulic cushion
630 ton capacity
1988 year of manufacture

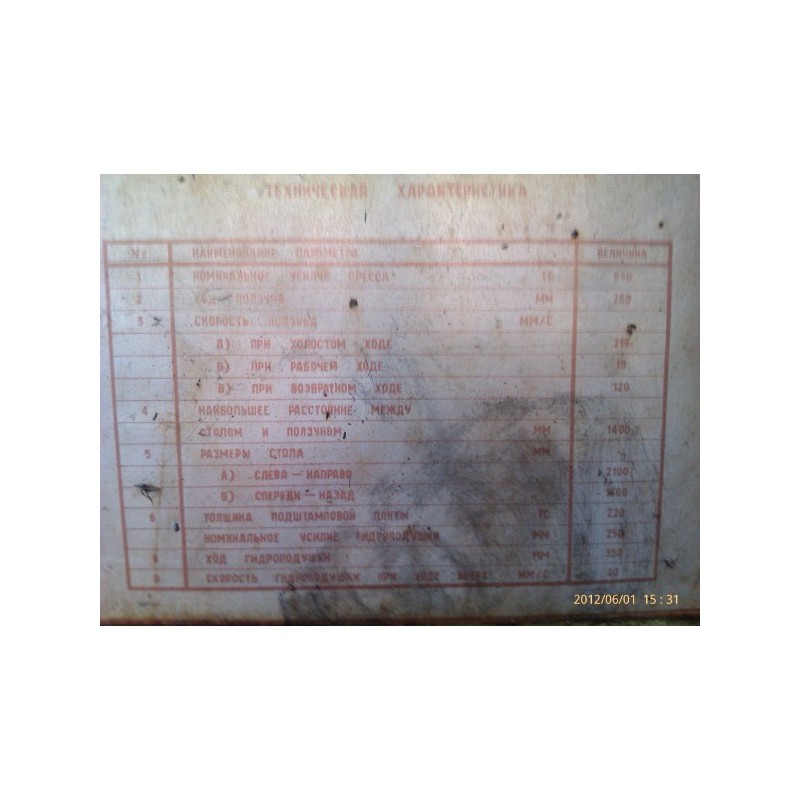

Specification:
Slide stroke: 750 mm
Max. distance between table and slide: 1400 mm
Table size: 2100 x 1800 mm
Reinforced plate thickness: 220 mm
Top knock-out force: 220 tons
Cushion stroke: 350 mm
Main motor power: 30 kw
Machine dimensions: 4800 x 7100 x 7100 mm
Press weight: 82000 kg
Hydro-cushion: 250 tons, 4200 mm

Good working conditions.
Fully customized.
Equipped with hydraulic cushion.



Price: 120,000 USD FCA.

  • Seller's country: Ukraine
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • Long: 3,000 - 5,000 mm
  • Width: More than 3,000 mm
  • High: More than 3,500 mm
  • Motor power: 30 - 75 kW
  • Bending/pressing force: 150 - 300 tons
  • Condition: Array
  • Peso: 0.000000
