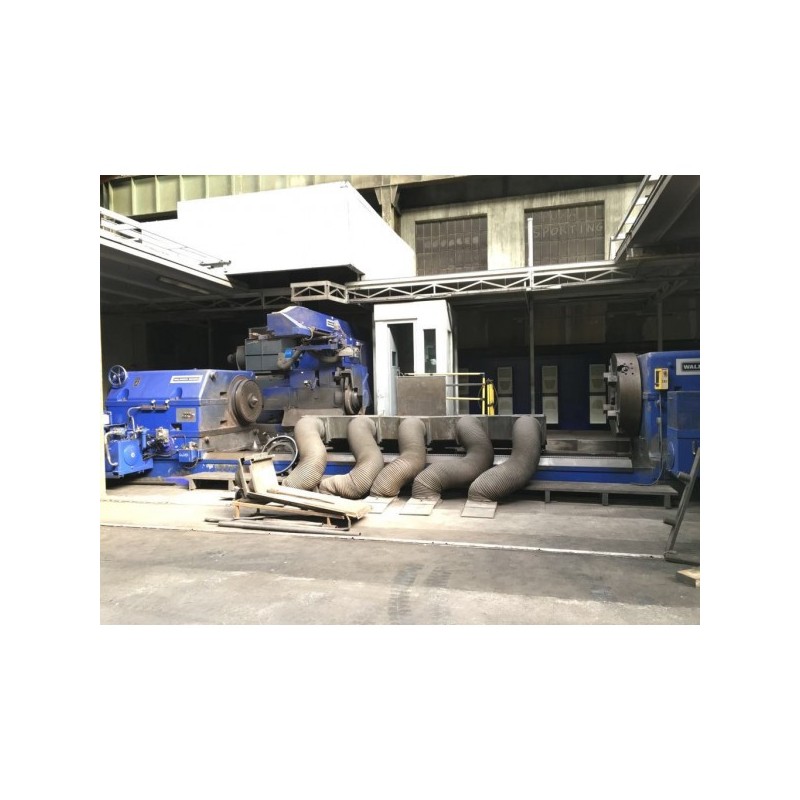

CNC Cylindrical External Grinding Waldrich Siegen mod. WS1
Manufacturer: WALDRICH SIEGEN
Type: WS1 h-sp 50x8000
YOM: Retrofitted in 2009

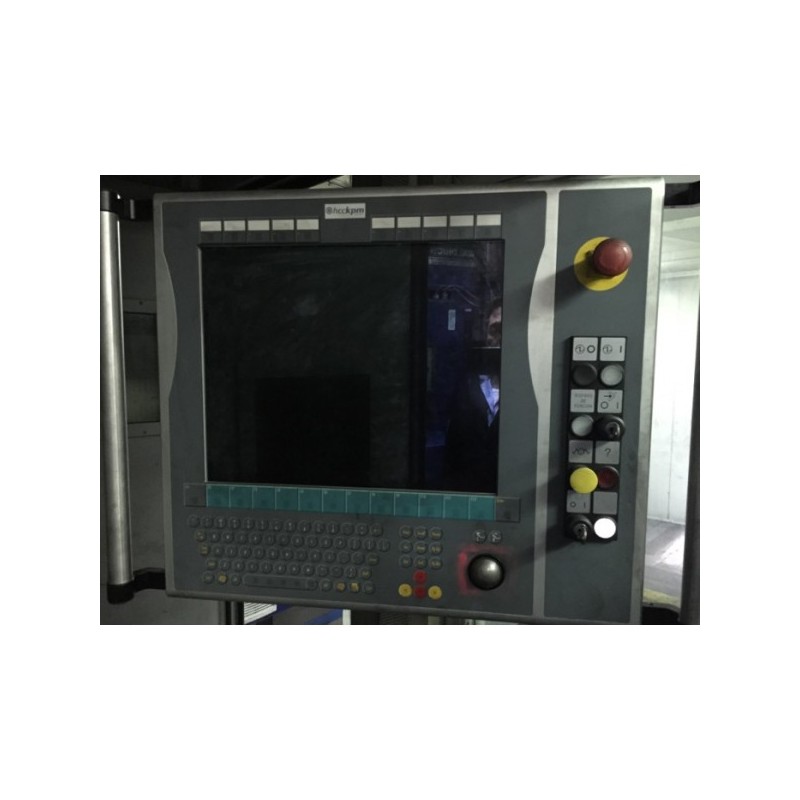

CNC: Siemens
CAPACITY:
Max diameter of rolls to be ground with
wheel of 900 mm dia. 1500 mm
wheel of 800 mm dia. 1800 mm
Min diameter of rolls to be ground with
Wheel of 900 mm dia. 100 mm
Overall lenght of rolls: 8000 mm
Max weight of workpieces 50 ton
HEADSTOCK:
Output of driving motor: 15-60-60 HP
Speeds of this motor, infinetly variable: 180-720-1800 r.p.m.
Face plate speeds: 6-60 r.p.m.
Output of starting motors: 15 HP
GRINDING CARRIAGE:
Feed of grinding carriage, inf. variable: 60-4000 mm/min
Outupt of feed motor: 8,5 HP
Speeds of this motor, inf. variable: 24-1600 r.p.m.
Cross travel of top rest: 700 mm
Output of grinding wheel motor: 100 HP
Speeds of this motor, inf. variable: 500-1000-2000 r.p.m.
Speeds of grinding spindle: 400-1600 r.p.m.
GRINDING WHEELS:
Diameter: 900 mm
Width: 90 mm
Bore: 305 mm
