NHP 6300

Doosan

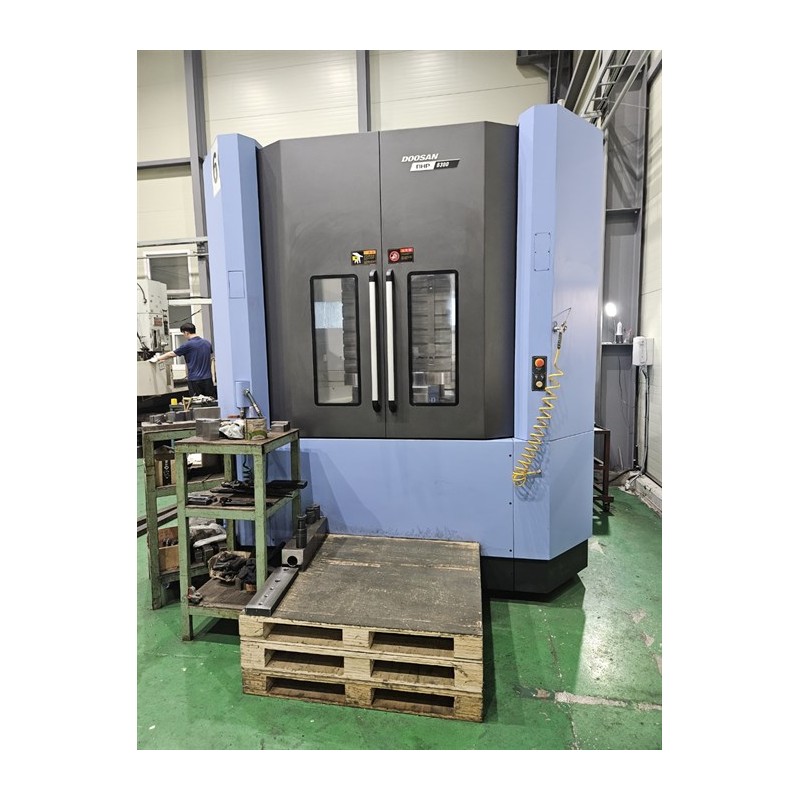

2019 DOOSAN NHP 6300 CNC HORIZONTAL MACHINING CENTER
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer Doosan
Condition Used - Working
Price type On request

Technical specifications

Weight 18.007,60 kg
X travel 1.049,02 mm
Y travel 899,16 mm
Z travel 1.000,76 mm
Spindle speed 10.000 rpm
Spindle power 37,30 kW
Tool changer slots 90

Occasional seller

F
FELDER ROYALTIES & INVESTMENT LLC Private seller
Member since 2024
36 ads online

SEND REQUEST

NHP 6300
NHP 6300

Pallet Size 24.8" x 24.8", Number Of Pallets 2, Pallet Weight Capacity 3,307 LBS., Workpiece Dimensions 41.3" x 53.1" (H), X - Axis Travel 41.3", Y - Axis Travel 35.4", Z - Axis Travel 39.4", B - Axis Travel 1 DEGREE, Rapid Traverse Rates X, Y, Z 1968, 1968, 1968 IPM, Spindle Speed 10,000 RPM, Spindle Taper 50, Main Motor 50 HP, Automatic Tool Changer 90 ATC, Machine Weight 39,700 LBS., FANUC 31IB CNC CONTROL SCALES FOR X,Y,Z, THRU SPINDLE COOLANT RENISHAW OMP60 PROBE, RENISHAW TS27R TOOL PROBE ROBOT INTERFACE

  • Seller's country: United States
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • X Travel: 1,000 - 2,000 mm
  • Y travel: 600 - 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: 8,000 - 15,000 rpm
  • Spindle power: More than 30 kW
  • Tool changer: More than 60
  • Condition: Array
  • Peso: 0.000000
