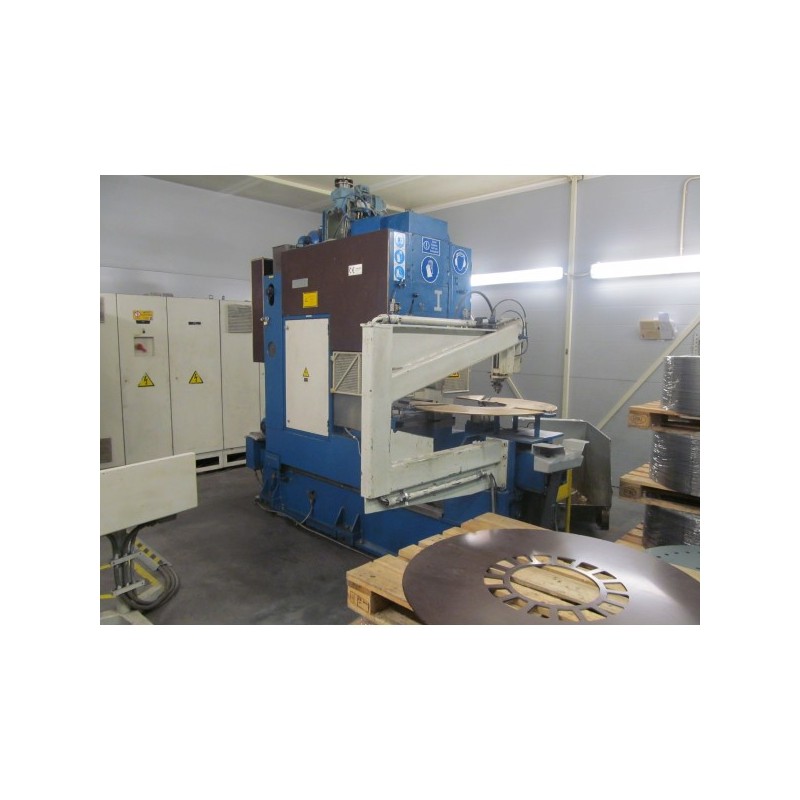

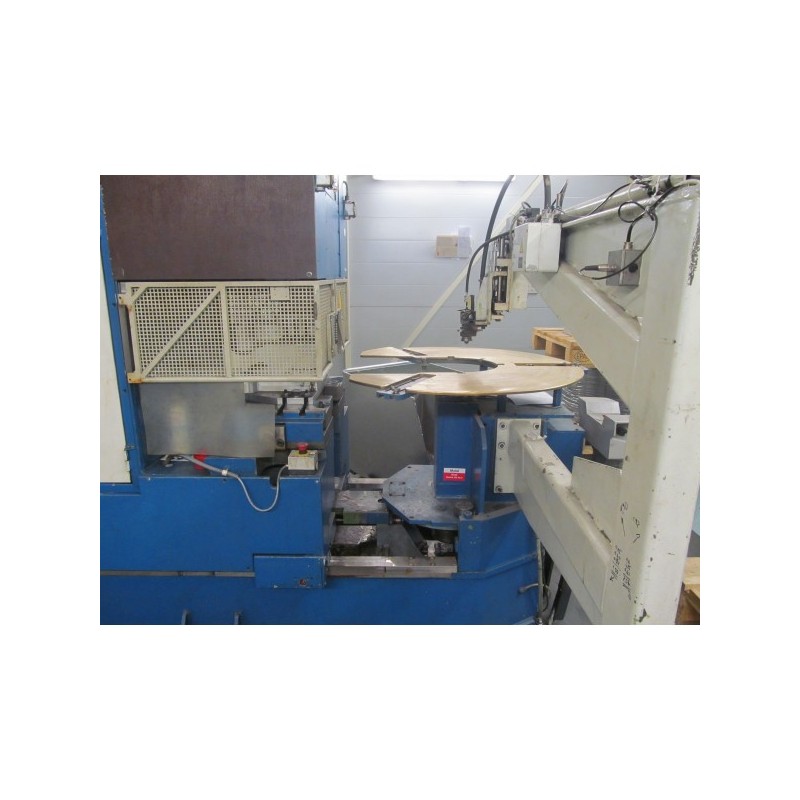

Schuler N16N Notching press

- Press force 160 kN;

- Year 1984;

- Maximum lamination thickness 2.0 mm;

- Maximum external lamination diameter (current worktable) 1800 (1050) mm;

- Closing height SDAU 260 mm;

- Slide stroke 42 mm;

- Slide adjustment 18 mm;

- Worktable 600 x 360 mm;

- Scrap hole size 90 x 180 mm;

- Slide and rotation center distance (radius notches) 135... 700 mm;

- Notch count 12... 999 pcs;

- Variable speed stamping 100... 600 spm;

- Power supply 23 kVA;

- Air supply pressure 5.5 bar 40 l/min;

- Overall height floor level 3300 mm;

- Overall weight < 10,000 kg;

- «CE» marking yes;
