CNC workshops Piesok LK160

Some data:
LK160 trimming press
160 tn capacity
1990 year of manufacture
by Strojarne Piesok, Czechoslovakia
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Weight 11.900 kg
Length 1.820 mm
Width 1.750 mm
Height 4.200 mm
Motor power 18,50 kW

Occasional seller

S
STAN MT LLC Private seller
Member since 2017
80 ads online

SEND REQUEST

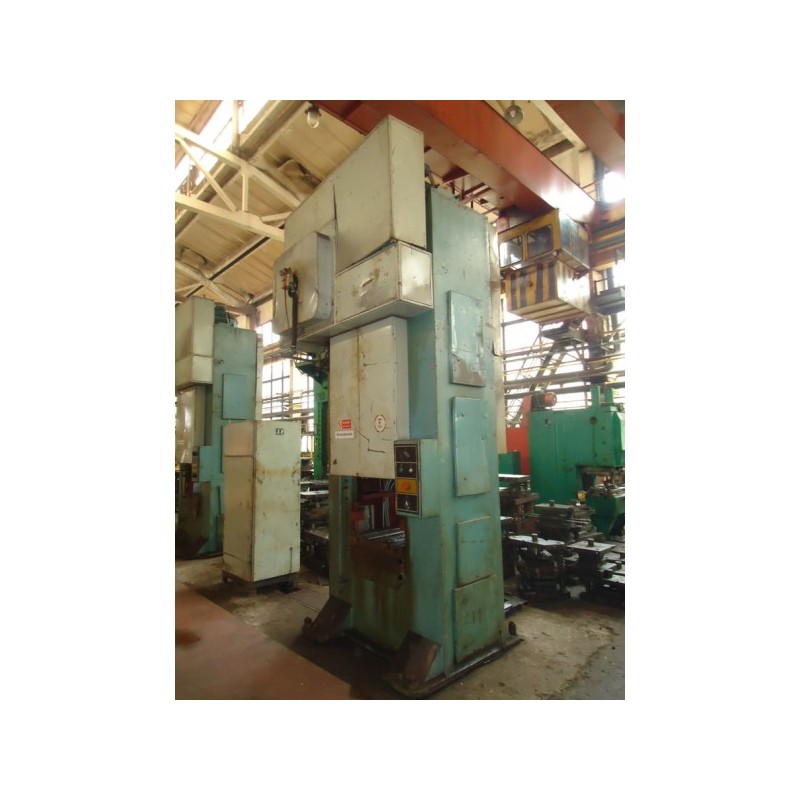

Strojarne Piesok LK160

LK160 Trimming Press


Specification:
Capacity, ton 160
Table size, mm 710 x 810
RAM size, mm 670 x 670
Closed height, mm 560
RAM stroke, mm 200
RAM strokes per minute 36
Collar plate adjustment times, mm 120
Reinforcement plate thickness, mm 120
Table hole diameter, mm 320
RAM hole diameter, mm 65
Main motor power, kW 18.5
Total required power, kW 28.5
Press dimensions, mm 1820 x 1750 x 4200
Press weight, kg 11900

Two presses are available. They are complete and in good condition.

  • Seller's country: Ukraine
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • Long: 1,000 - 2,000 mm
  • Width: 1,000 - 2,000 mm
  • High: More than 3,500 mm
  • Motor power: 15 - 30 kW
  • Bending/pressing force: 150 - 300 tons
  • Condition: Array
  • Peso: 0.000000
