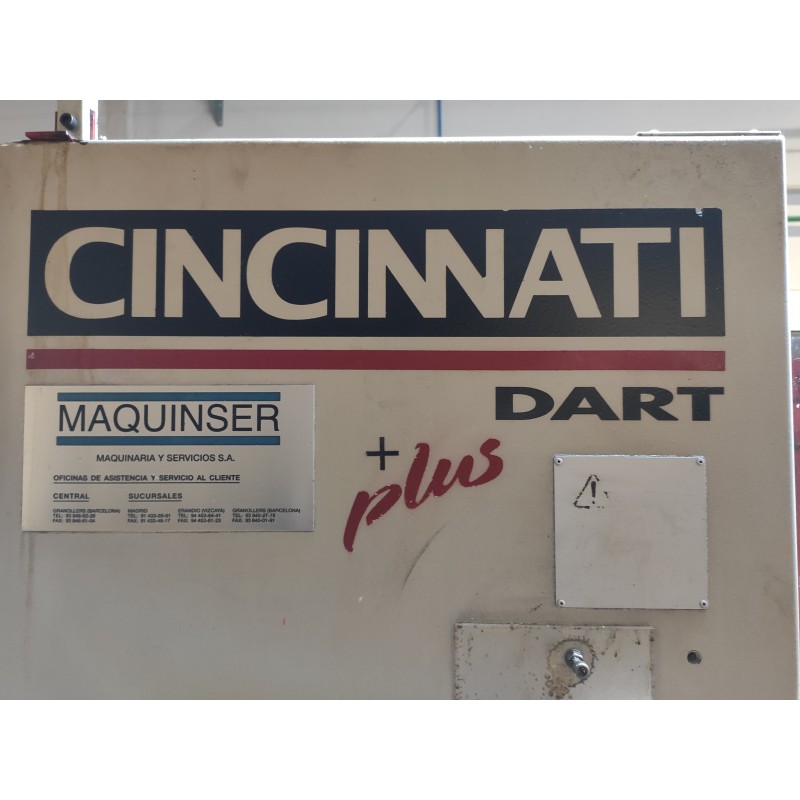

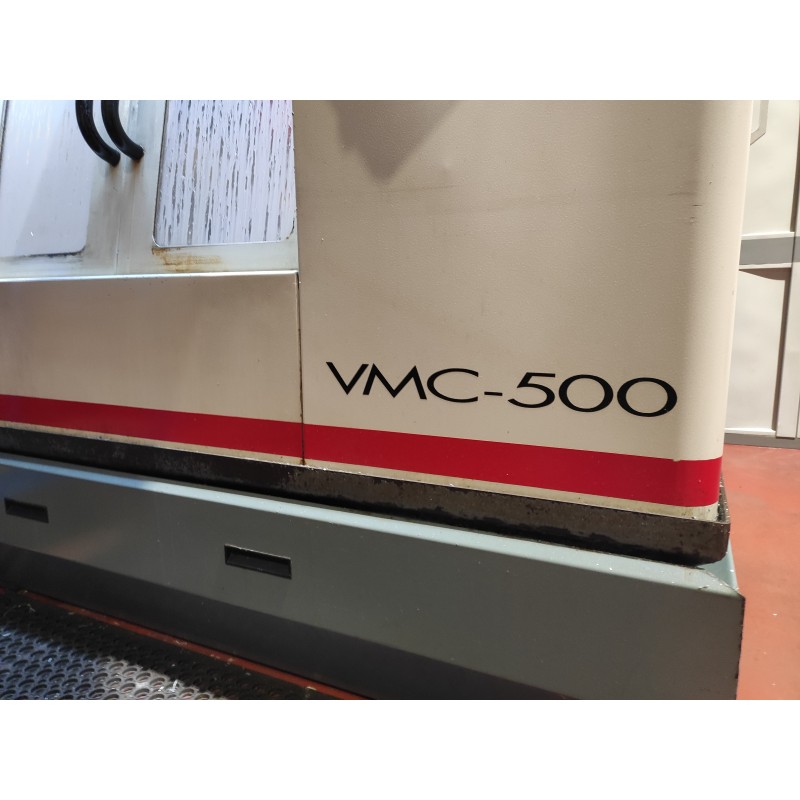

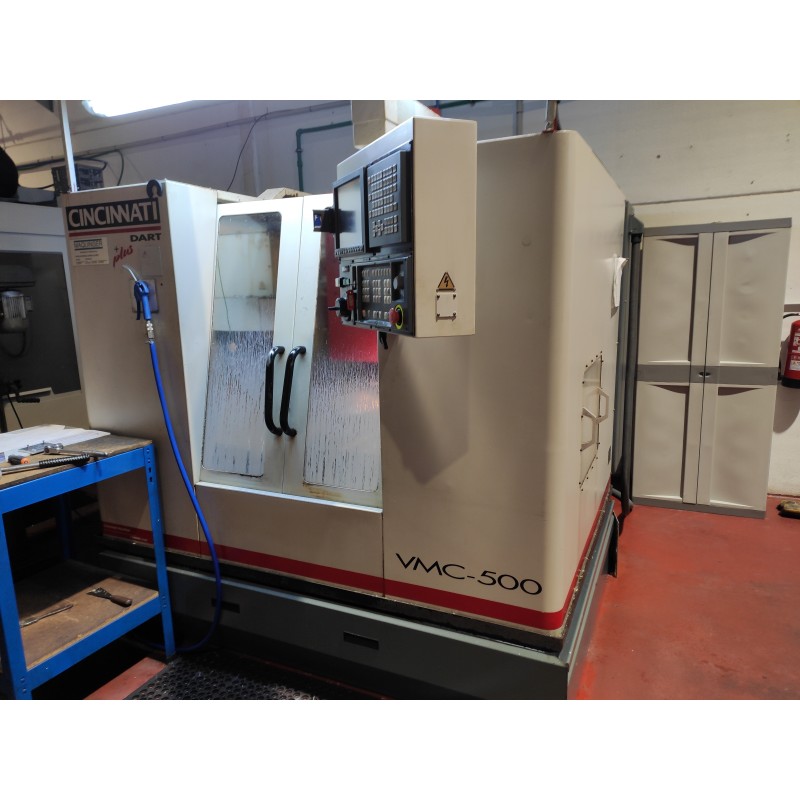

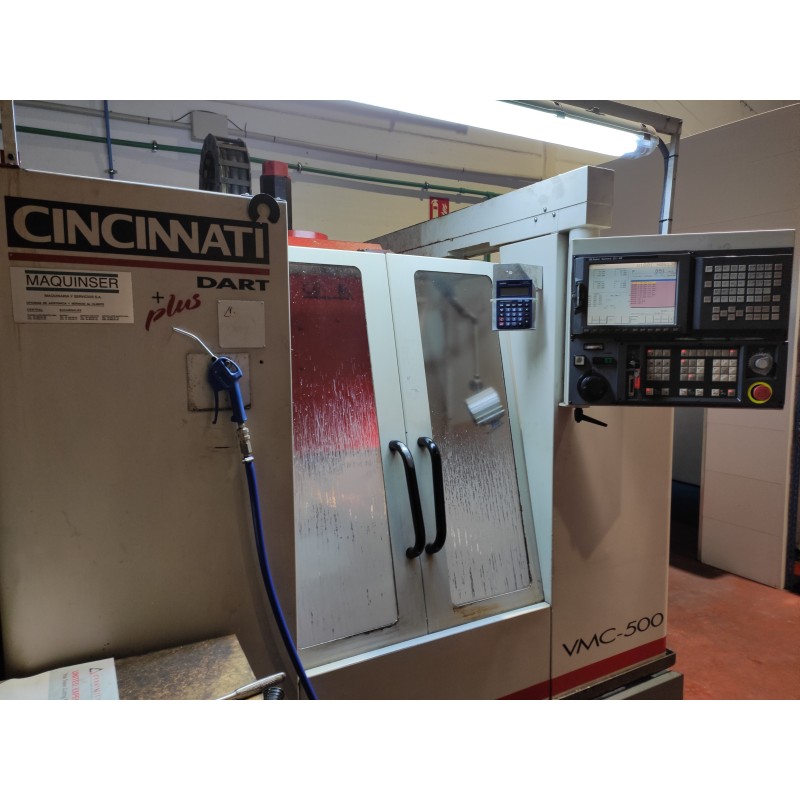

Cincinnati Dart Plus VMC-500 vertical machining center.

Specifications:

X, Y, Z axis travel range

 Longitudinal (table, X-axis) …………………………510 mm.
 Cross (saddle, Y-axis) ……………………………...…510 mm.
 Vertical (spindle head, Z-axis) ………………………510 mm.

Table, X-axis

 Work surface dimensions Length 700 mm.
Width 520 mm.
 Load capacity 350 Kg.

Spindle head, Z-axis

 Spindle motor power……………………………….7.5 Kw
 Maximum spindle speed…………..………..8000 rpm
 Spindle taper………………………………………BT40

Linear axis feeds

 X, Y, Z feeds……………………………12000 mm/min
 Rapid traverses X, Y, Z………………………....20 m/min

Storage unit / automatic tool changer

 Number of tools……………………………….21
 Tool selection method………Bidirectional rotation of the tool drum.
 Tool change time……………………..7.5 sec.

CNC system

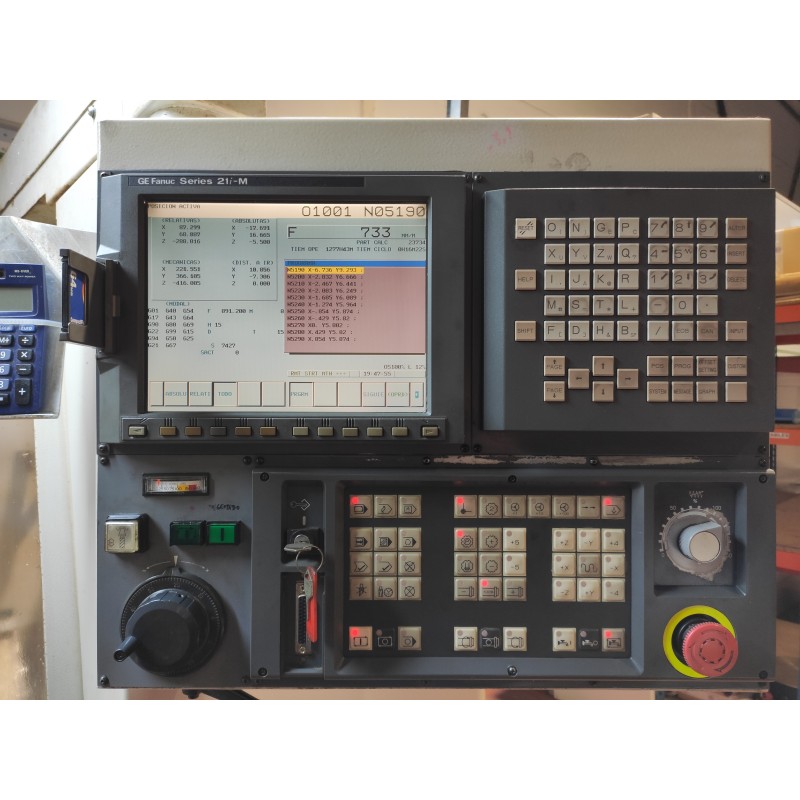

 Model and type………………………………..Fanuc 21i-M
 Number of axes…………………………………X Y Z

Coolant system:

 Tank………………………………………….178 liters

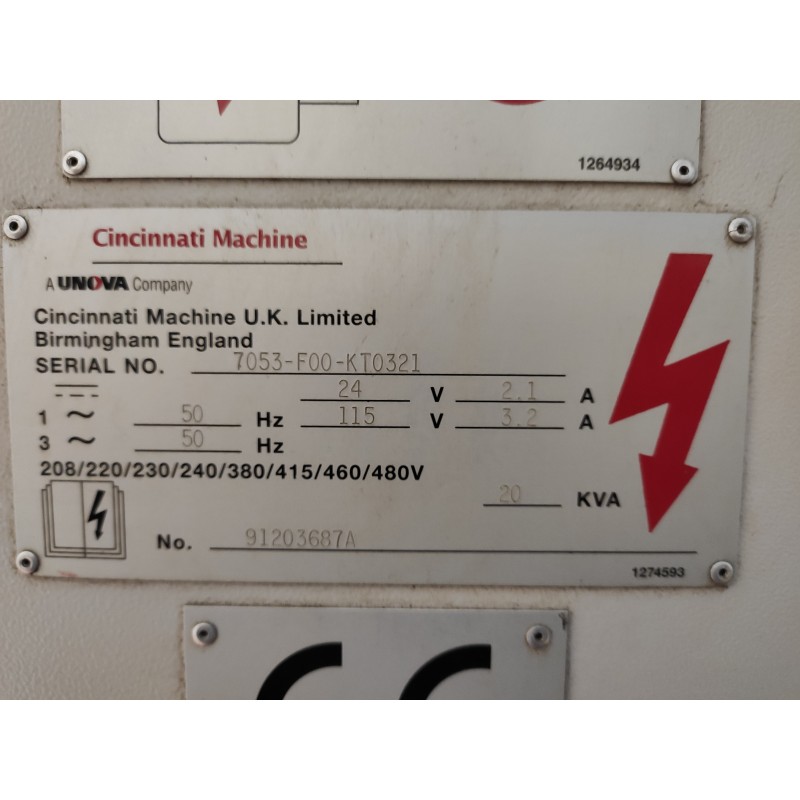

Electrical power requirements

 Spindle drive unit…………………16 KVA

Machine weight

 Approximate net machine weight……………3500 KG
