S33-APC

Makino
€35,000.00
Tax excluded

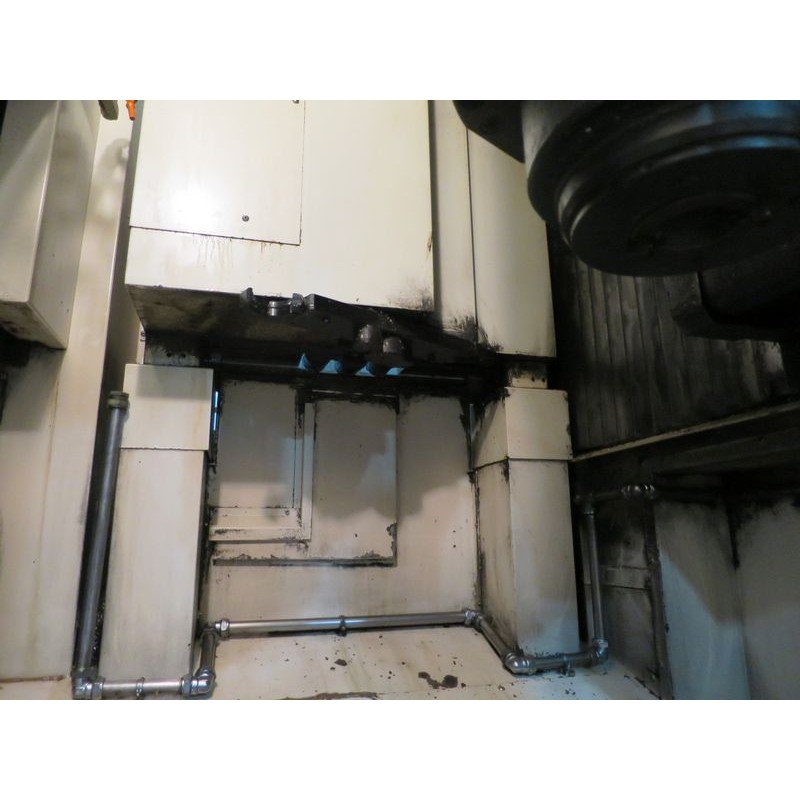

2006 MAKINO S33-APC 3-AXIS PRECISION CNC VERTICAL MACHINING CENTER W/PALLET CHANGER
Share
Price €35,000.00
Condition Used - Working

Machine data

Manufacturer Makino
Condition Used - Working
Price type Fixed price

Technical specifications

X travel 650,24 mm
Y travel 500,38 mm
Z travel 449,58 mm
Spindle speed 12.000 rpm
Spindle power 18 kW
Tool changer slots 30

Occasional seller

F
FELDER ROYALTIES & INVESTMENT LLC Private seller
Member since 2024
36 ads online

SEND REQUEST

S33-APC
S33-APC

Machine Strokes: Pallet Sizes 23.6" x 15.7" Travel: X25.6" Y19.7" Z17.7", Table top to spindle face 5.9" - 23.63", Pallet top to spindle face (APC m/c) 4.72" - 22.44", Machine Traverse Rates: Rapid traverse (X,Y) 1,574.8 in/min., Axis feed rate 1 - 1574.8 in/min., Table/Pallet: Maximum work size on pallet L x D H 26.77" x 15.75" x 16.56", Size of pallet (APC m/c) 23.62" x 15.75", Pallet load capacity 882 LBS, Spindle head (standard) 120-12,000 RPM, Spindle power 15 min/cont. 29.5/24.14 HP, Maximum torque (15 min/cont.) 1035.5/840.8 lb.-in, Spindle nose MAS 403-BT40/DIN 69871-A40 / JIS B6339-40T, Spindle oil cooling system Core cooling, Tool clamp force 1978 lbf ATC: No. of tools 30 (Option), Tool change time 1.3 Sec tool to tool, Max. tool dia 114/76.2mm (ATC20/ATC30), 130mm (with alternate pocket empty), Max. tool length 300mm, Max. tool weight 8 kg, APC (option): No. of pallets 2, Changing method Hydraulic driven rotary arm, Pallet change time 7 Sec

  • Year: 2006
  • Seller's country: United States
  • State: Used - Functional
  • X Travel: 500 - 1,000 mm
  • Y travel: 300 - 600 mm
  • Z travel: 300 - 500 mm
  • Spindle speed: 8,000 - 15,000 rpm
  • Spindle power: 15 - 30 kW
  • Tool changer: 30 - 60
  • Condition: Array
  • Peso: 0.000000
