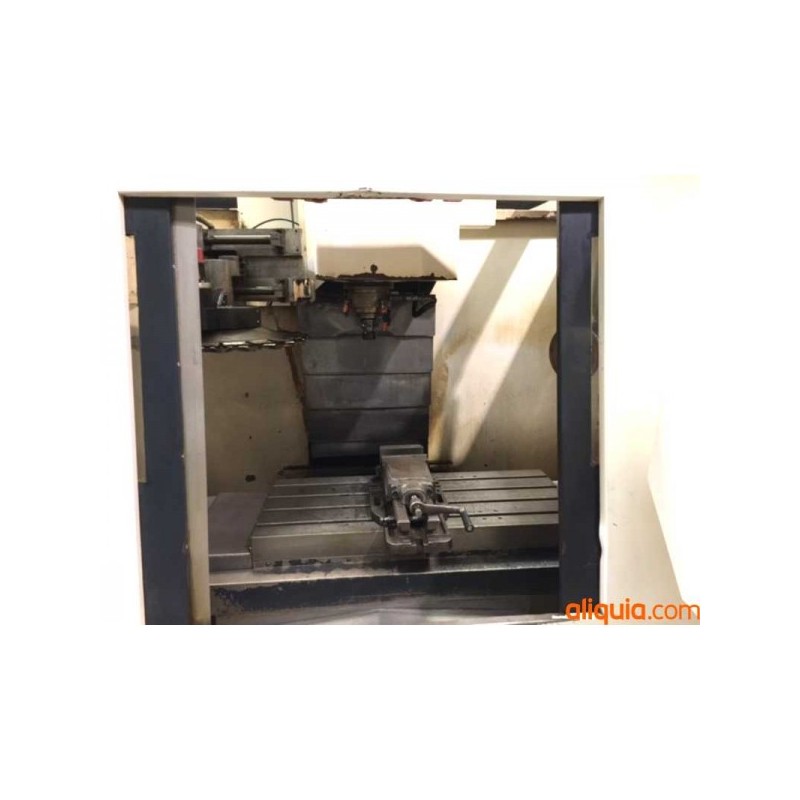

KRYLE vertical machining center

€13,200.00
Tax excluded
KRYLE VMC 700 VERTICAL MACHINING CENTER CNC FANUC
Share
Price €13,200.00
Condition Used - Working

Machine data

Condition Used - Working
Price type Fixed price

Technical specifications

Weight 3.900 kg
Length 2.560 mm
Width 2.400 mm
Height 2.150 mm
Control type CNC
CNC control brand Fanuc
Spindle speed 8.000 rpm
Spindle power 12 kW
Tool changer slots 20

Occasional seller

A
aliquia aliquia Private seller
Member since 2017
38 ads online

SEND REQUEST

Centro de mecanizado vertical KRYLE
Centro de mecanizado vertical KRYLE
Centro de mecanizado vertical KRYLE
Centro de mecanizado vertical KRYLE
Centro de mecanizado vertical KRYLE

Features:

Machining Center: Kryle (English manufacture)
Model: VMC 700F

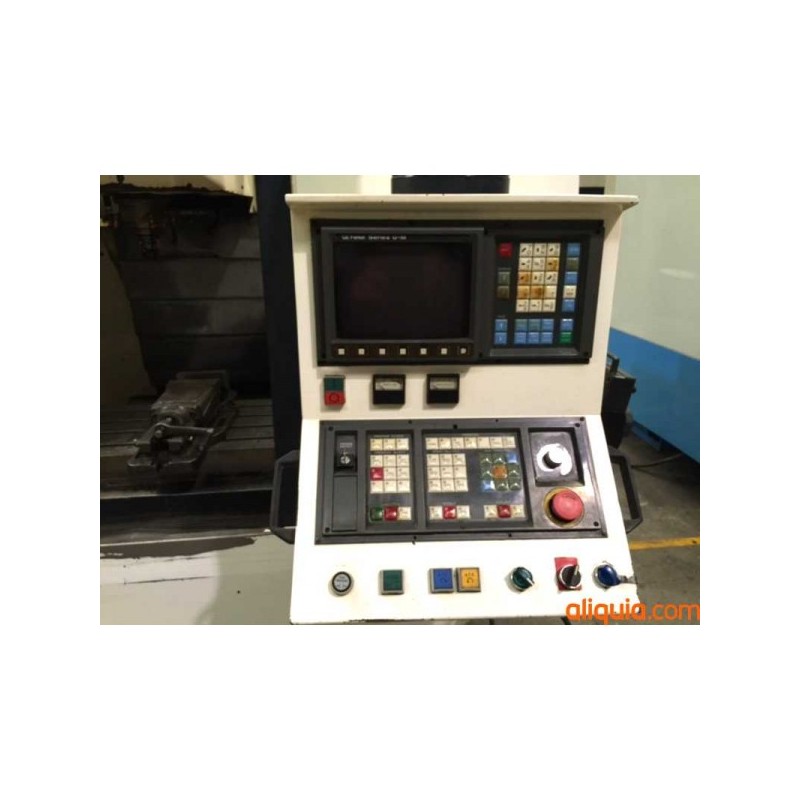

Control: FANUC OM
Longitudinal Travel X: 700 mm
Cross Travel Y: 450 mm
Vertical Travel Z: 450 mm
Spindle to Table Distance: 85-535 mm
Spindle to Column Distance: 460 mm
Table Dimensions: 1000×480 mm
Max. Weight on Table: 1000 Kgs.
Main Spindle Speed (rpm): 80-8000
Automatic Tool Changer Type: Umbrella
Number of Tools: 20
Taper Type: BT 40
Front Bearing Diameter: 90mm
Rapid Traverse X, Y, Z Axes: 30M per minute
Cutting Feed Rate: 1-30,000 mm per minute
Manual Feed Rate: 1-1260 mm per minute
Number of T-Slots: 4
Distance Between Slots: 110 mm
T-Slot Width: 18 mm
Maximum Tool Diameter: 110 mm
Maximum Tool Length: 250 mm
Maximum Tool Weight: 4kg
Tool Change Time: 5 seconds
Chip-to-Chip Time: 9 seconds
Tool Holder: MAS 403-1
Main Spindle Motor Power: AC 12 P
X, Y Axis Motor Power: 7.5 Kw
Z Axis Motor Power: 5S/1.2 kw
Tool Change Motor Power: 3.0 S
Machine Dimensions: 2560mm x 2400mm x 2150mm
Machine Weight: 3900Kg
CE Certificate

For more information, to request additional details or a visit, you must register as a user on the aliquia . com website.

  • X travel (mm): I need the text you want me to translate. Please provide the Spanish text you'd like translated into English.
  • Y travel (mm): 450
  • Z travel (mm): 450
  • Rotation speed (rpm): 8000
  • Seller's country: Spain
  • State: Used - Functional
  • Weight: 2,500 - 5,000 kg
  • Long: 2,000 - 3,000 mm
  • Width: 2,000 - 3,000 mm
  • High: 1,500 - 2,500 mm
  • Control type: CNC
  • X Travel: 500 - 1,000 mm
  • Y travel: 300 - 600 mm
  • Z travel: 300 - 500 mm
  • Spindle speed: 8,000 - 15,000 rpm
  • Spindle power: 5 - 15 kW
  • Tool changer: 20 - 30
  • CNC control brand: Fanuc
  • Condition: Array
  • Peso: 0.000000
